224n上有提到knn对高纬数据的不适性, 所以这里需要降纬, 简单的有PCA, 这里把任意唯独降为2维的有t-sne方法, 这种方法效果还是比较好的.

下面是t-sne的源码

#
#  tsne.py
#
# Implementation of t-SNE in Python. The implementation was tested on Python 2.7.10, and it requires a working
# installation of NumPy. The implementation comes with an example on the MNIST dataset. In order to plot the
# results of this example, a working installation of matplotlib is required.
#
# The example can be run by executing: `ipython tsne.py`
#
#
#  Created by Laurens van der Maaten on 20-12-08.
#  Copyright (c) 2008 Tilburg University. All rights reserved.

import numpy as Math
import pylab as Plot

def Hbeta(D = Math.array([]), beta = 1.0):
    """Compute the perplexity and the P-row for a specific value of the precision of a Gaussian distribution."""

    # Compute P-row and corresponding perplexity
    P = Math.exp(-D.copy() * beta);
    sumP = sum(P);
    H = Math.log(sumP) + beta * Math.sum(D * P) / sumP;
    P = P / sumP;
    return H, P;


def x2p(X = Math.array([]), tol = 1e-5, perplexity = 30.0):
    """Performs a binary search to get P-values in such a way that each conditional Gaussian has the same perplexity."""

    # Initialize some variables
    print "Computing pairwise distances..."
    (n, d) = X.shape;
    sum_X = Math.sum(Math.square(X), 1);
    D = Math.add(Math.add(-2 * Math.dot(X, X.T), sum_X).T, sum_X);
    P = Math.zeros((n, n));
    beta = Math.ones((n, 1));
    logU = Math.log(perplexity);

    # Loop over all datapoints
    for i in range(n):

        # Print progress
        if i % 500 == 0:
            print "Computing P-values for point ", i, " of ", n, "..."

        # Compute the Gaussian kernel and entropy for the current precision
        betamin = -Math.inf;
        betamax =  Math.inf;
        Di = D[i, Math.concatenate((Math.r_[0:i], Math.r_[i+1:n]))];
        (H, thisP) = Hbeta(Di, beta[i]);

        # Evaluate whether the perplexity is within tolerance
        Hdiff = H - logU;
        tries = 0;
        while Math.abs(Hdiff) > tol and tries < 50:

            # If not, increase or decrease precision
            if Hdiff > 0:
                betamin = beta[i].copy();
                if betamax == Math.inf or betamax == -Math.inf:
                    beta[i] = beta[i] * 2;
                else:
                    beta[i] = (beta[i] + betamax) / 2;
            else:
                betamax = beta[i].copy();
                if betamin == Math.inf or betamin == -Math.inf:
                    beta[i] = beta[i] / 2;
                else:
                    beta[i] = (beta[i] + betamin) / 2;

            # Recompute the values
            (H, thisP) = Hbeta(Di, beta[i]);
            Hdiff = H - logU;
            tries = tries + 1;

        # Set the final row of P
        P[i, Math.concatenate((Math.r_[0:i], Math.r_[i+1:n]))] = thisP;

    # Return final P-matrix
    print "Mean value of sigma: ", Math.mean(Math.sqrt(1 / beta));
    return P;


def pca(X = Math.array([]), no_dims = 50):
    """Runs PCA on the NxD array X in order to reduce its dimensionality to no_dims dimensions."""

    print "Preprocessing the data using PCA..."
    (n, d) = X.shape;
    X = X - Math.tile(Math.mean(X, 0), (n, 1));
    (l, M) = Math.linalg.eig(Math.dot(X.T, X));
    Y = Math.dot(X, M[:,0:no_dims]);
    return Y;


def tsne(X = Math.array([]), no_dims = 2, initial_dims = 50, perplexity = 30.0):
    """Runs t-SNE on the dataset in the NxD array X to reduce its dimensionality to no_dims dimensions.
    The syntaxis of the function is Y = tsne.tsne(X, no_dims, perplexity), where X is an NxD NumPy array."""

    # Check inputs
    if isinstance(no_dims, float):
        print "Error: array X should have type float.";
        return -1;
    if round(no_dims) != no_dims:
        print "Error: number of dimensions should be an integer.";
        return -1;

    # Initialize variables
    X = pca(X, initial_dims).real;
    (n, d) = X.shape;
    max_iter = 1000;
    initial_momentum = 0.5;
    final_momentum = 0.8;
    eta = 500;
    min_gain = 0.01;
    Y = Math.random.randn(n, no_dims);
    dY = Math.zeros((n, no_dims));
    iY = Math.zeros((n, no_dims));
    gains = Math.ones((n, no_dims));

    # Compute P-values
    P = x2p(X, 1e-5, perplexity);
    P = P + Math.transpose(P);
    P = P / Math.sum(P);
    P = P * 4;                                    # early exaggeration
    P = Math.maximum(P, 1e-12);

    # Run iterations
    for iter in range(max_iter):

        # Compute pairwise affinities
        sum_Y = Math.sum(Math.square(Y), 1);
        num = 1 / (1 + Math.add(Math.add(-2 * Math.dot(Y, Y.T), sum_Y).T, sum_Y));
        num[range(n), range(n)] = 0;
        Q = num / Math.sum(num);
        Q = Math.maximum(Q, 1e-12);

        # Compute gradient
        PQ = P - Q;
        for i in range(n):
            dY[i,:] = Math.sum(Math.tile(PQ[:,i] * num[:,i], (no_dims, 1)).T * (Y[i,:] - Y), 0);

        # Perform the update
        if iter < 20:
            momentum = initial_momentum
        else:
            momentum = final_momentum
        gains = (gains + 0.2) * ((dY > 0) != (iY > 0)) + (gains * 0.8) * ((dY > 0) == (iY > 0));
        gains[gains < min_gain] = min_gain;
        iY = momentum * iY - eta * (gains * dY);
        Y = Y + iY;
        Y = Y - Math.tile(Math.mean(Y, 0), (n, 1));

        # Compute current value of cost function
        if (iter + 1) % 10 == 0:
            C = Math.sum(P * Math.log(P / Q));
            print "Iteration ", (iter + 1), ": error is ", C

        # Stop lying about P-values
        if iter == 100:
            P = P / 4;

    # Return solution
    return Y;


if __name__ == "__main__":
    print "Run Y = tsne.tsne(X, no_dims, perplexity) to perform t-SNE on your dataset."
    print "Running example on 2,500 MNIST digits..."
    X = Math.loadtxt("/users/xuguodong/desktop/tsne_python/mnist2500_X.txt");
    labels = Math.loadtxt("/users/xuguodong/desktop/tsne_python/mnist2500_labels.txt");
    Y = tsne(X, 2, 50, 20.0);
    Plot.scatter(Y[:,0], Y[:,1], 20, labels);
    Plot.show();

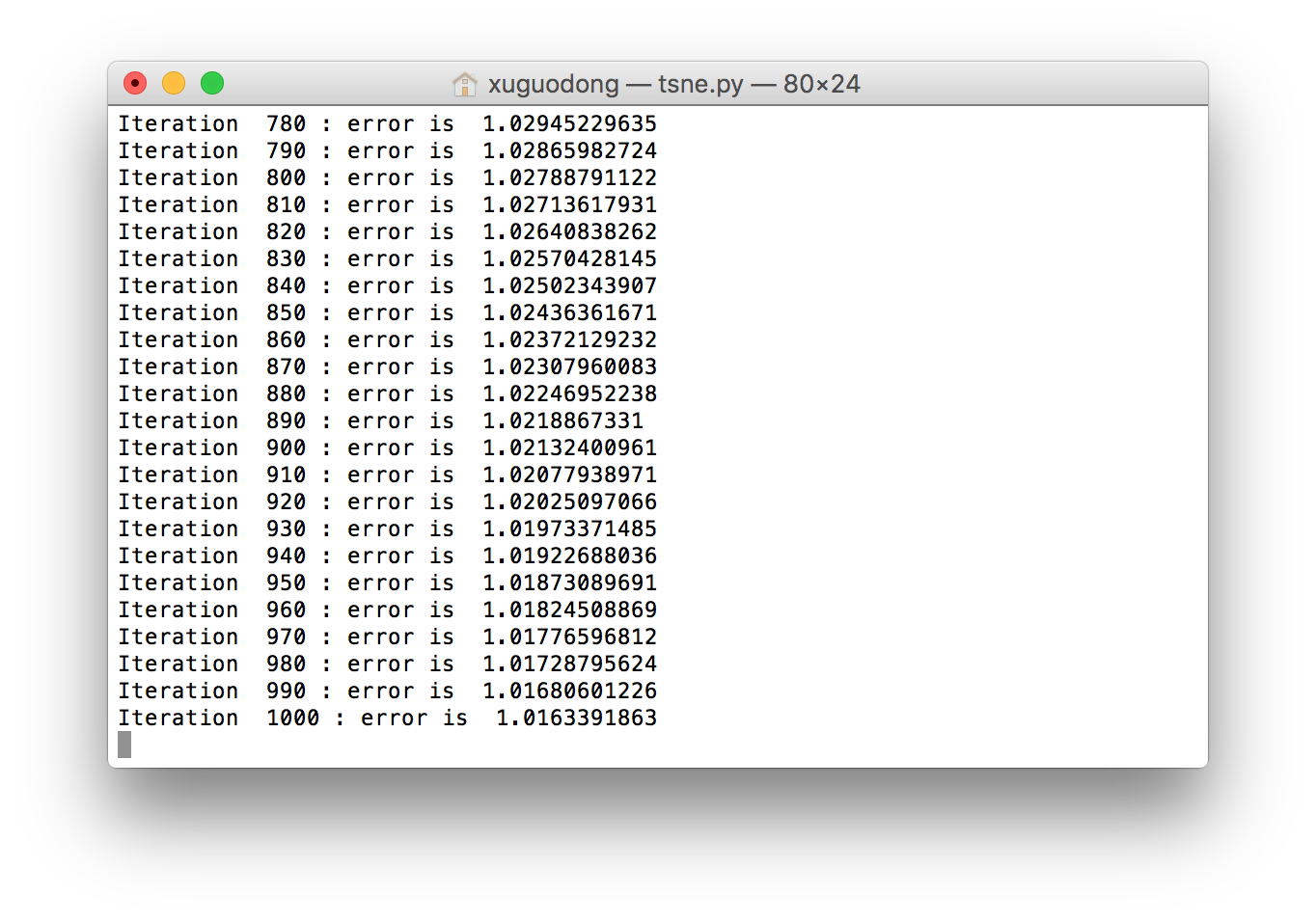

在我的机器上经过了1000次itr 误差达到1%, 效果还是很不错的 关键是

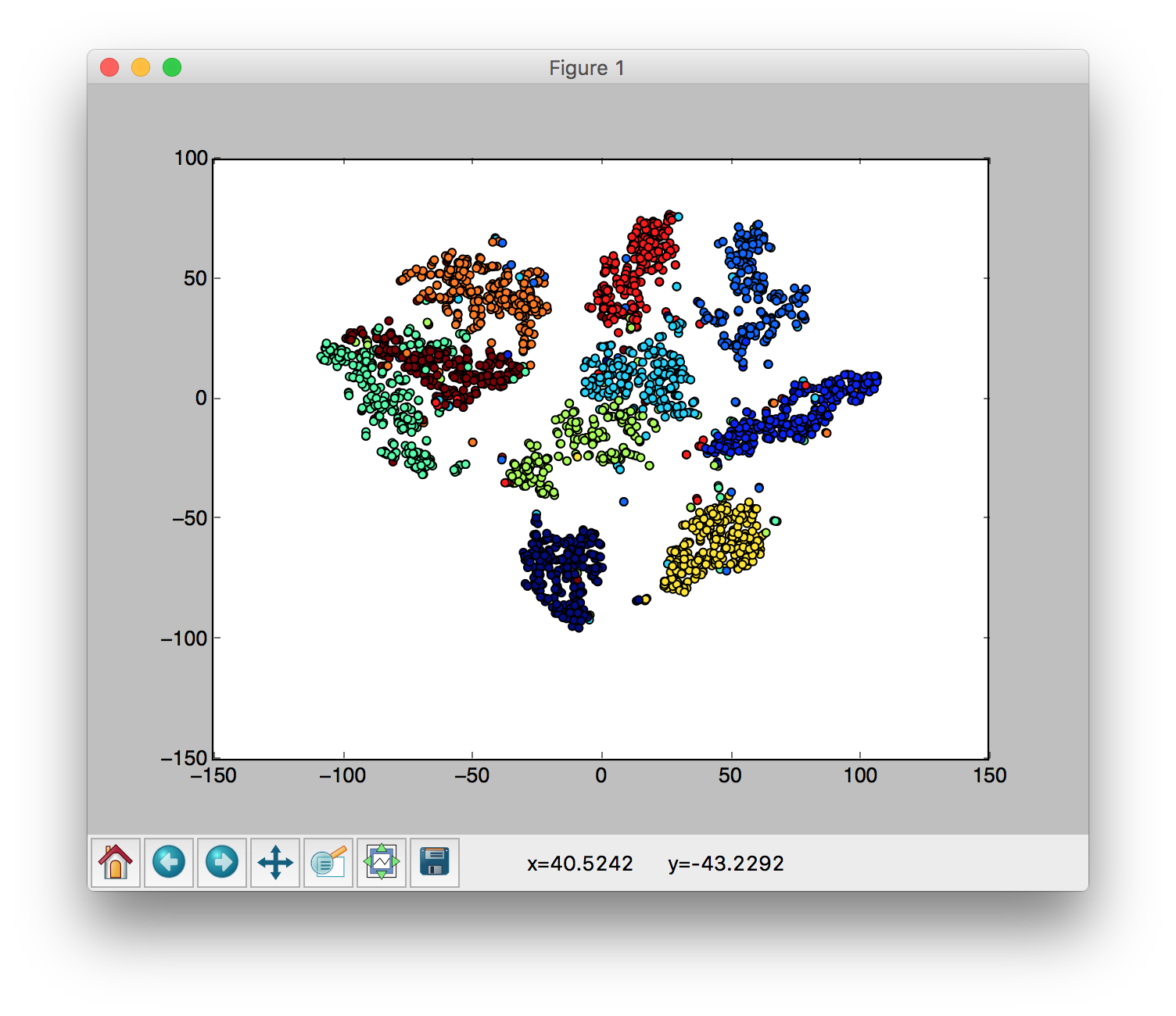

最后把mnist数据降到了二维并且用scatter画了出来, 可以看出的是, 这里不同的数字确实被分到了不同的区域上了.
